大黄蜂伺服码垛机

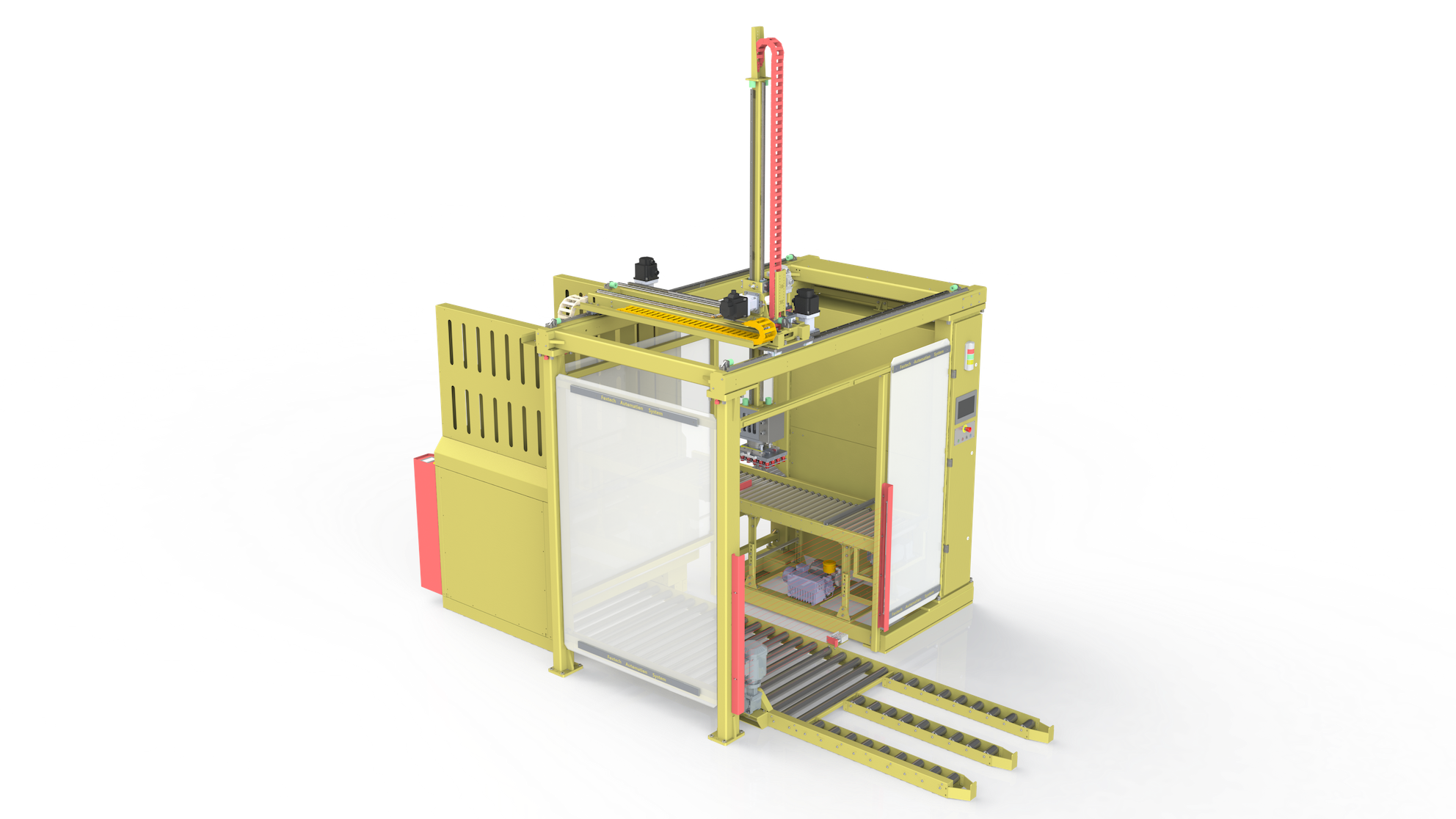

Bumblebee Gantry Palletizer大黄蜂直角坐标码垛机

Smaller footprint, more reliable and great cost performance         占地面积仅5平方米,高速可靠,极高性价比



Intro    设备简介:

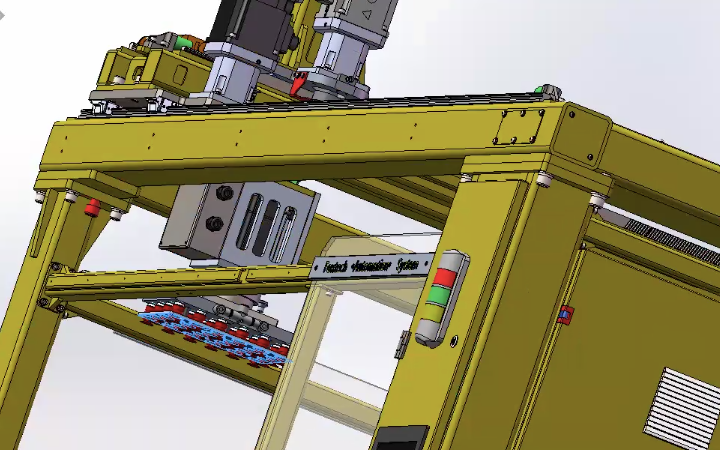

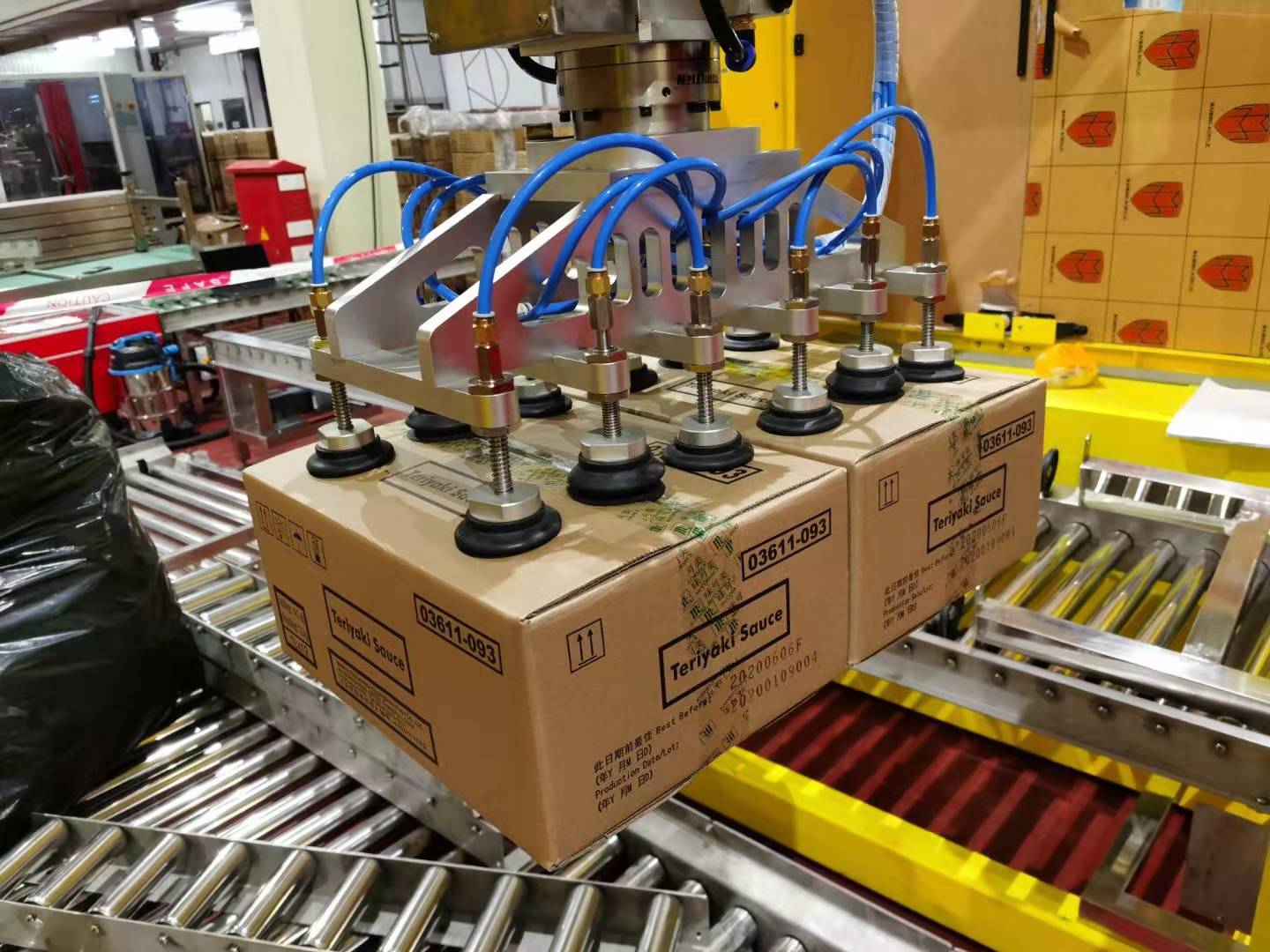

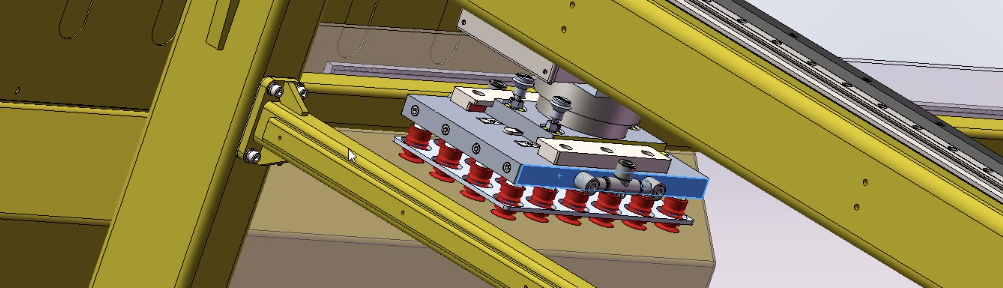

The Bumblebee Palletizer is a fully automatic industrial system assembled using high-precision, self-developed standard components. It is built on a Cartesian coordinate system (X, Y, Z axes) combined with a rotary axis, enabling the gripper to automatically adjust and perform precise trajectory movements for handling cartons. Designed with the goal of "replacing manual labor with machines," it helps customers solve issues related to material handling inefficiency, labor shortages, and high operational risks.The Bumblebee Palletizer consists of a mounting frame, positioning system, servo drive system, control system, electrical distribution system, and safety protection devices. It can also be equipped with an automatic infeed positioning system and an optional automatic wire feeding system.Key features include:Compact footprintStable operation24/7 continuous working capabilitySimple operationEasy installationIt is especially suitable for industries such as daily chemicals, food, and beverages.                         大黄蜂码垛机是采用自主研发的高精度标准部件组装而成,一种建立在直角X,Y,Z 三坐标系统和旋转轴基础上,对抓手进行自动调整从而实现纸箱的轨迹运动功能的全自动工业设备。帮助客户解决各类物料搬运,效率低下或者搬运风险高等问题,以“机器换人”为目标。大黄蜂码垛机由安装架、定位系统、伺服驱动系统、控制系统及电控配电系统、安全防护装置等组成,配套进料自动定位系统(可选配自动供线系统)。它具有占地小巧,工作稳定,24小时不间断工作,操作简单,占地小,安装简单等优点。适合日化、食品、饮料等行业使用。

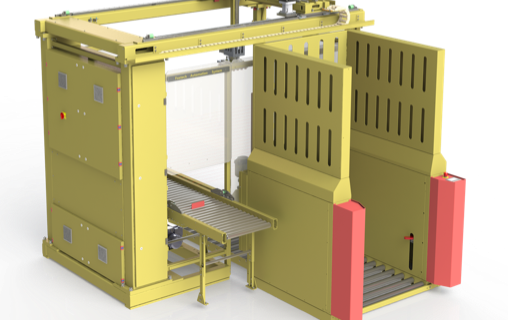

  • Smaller footprint                     占地小巧
    less than 5 m2          总面积仅5平方米

  • Schneider PLC + 智能码垛软件
    Peace of mind.        频繁转产无烦恼

  • Schneider / Siemens HMI
    Bigger screen 屏幕宽大,手感好到爆炸

  • Easy installation                    安装简便
    Plug & Play         即插即用,维护简易

  • 24/7 小时
    Say no to labor strike    连续运作不歇工

  • SEW & 施耐德伺服电机
    Stable and Reliable     稳定可靠无差错

Specification 产品参数

Specification 规格
Product Types 产品支持类型:

RSC, Tray, Strapped cartons, Color boxes

纸箱,托盆,收缩捆包,彩包

Carton Dimension 产品尺寸:
Min.200L x 200W x 200H mm.
Max.600L x 400W x 400H mm.

Product Weights 产品重量
35 kg

Palletizing Speed 码垛速度

Max. speed 17 cases/min.  单抓多放最大速度17/分钟

Palletizing Types.  可存垛型数

50种+

Max. Palletizing Height. 最大堆高

1800 mm.

Support Pallet Types 支持托盘类型

1200x1000, 1200x800;(托盘高度:150~165mm), 800x600, 1300x1300 etc

Core Design 核心设计

Four axis, driven by Schneider control system

4轴(取决于需求)齿条驱动,施耐德控制系统

Connection 连接
Power Supply 供电
380 V, 50/60Hz 3 phases
3相五线,380伏交流
Power 总安装功率
10kVA

Industrial Classes 电柜防尘等级
IP54

Pressure  气压
5.5 Bar,无油润滑

Air Consumption     耗气量

Average 10NL/min (Independent vacuum pump)

平均10NL/min(非射流真空设

Safety Standard. 安全标准
Safey Standard 安全标准

Compliance to CAT III specification

符合Cat.3安全规范
