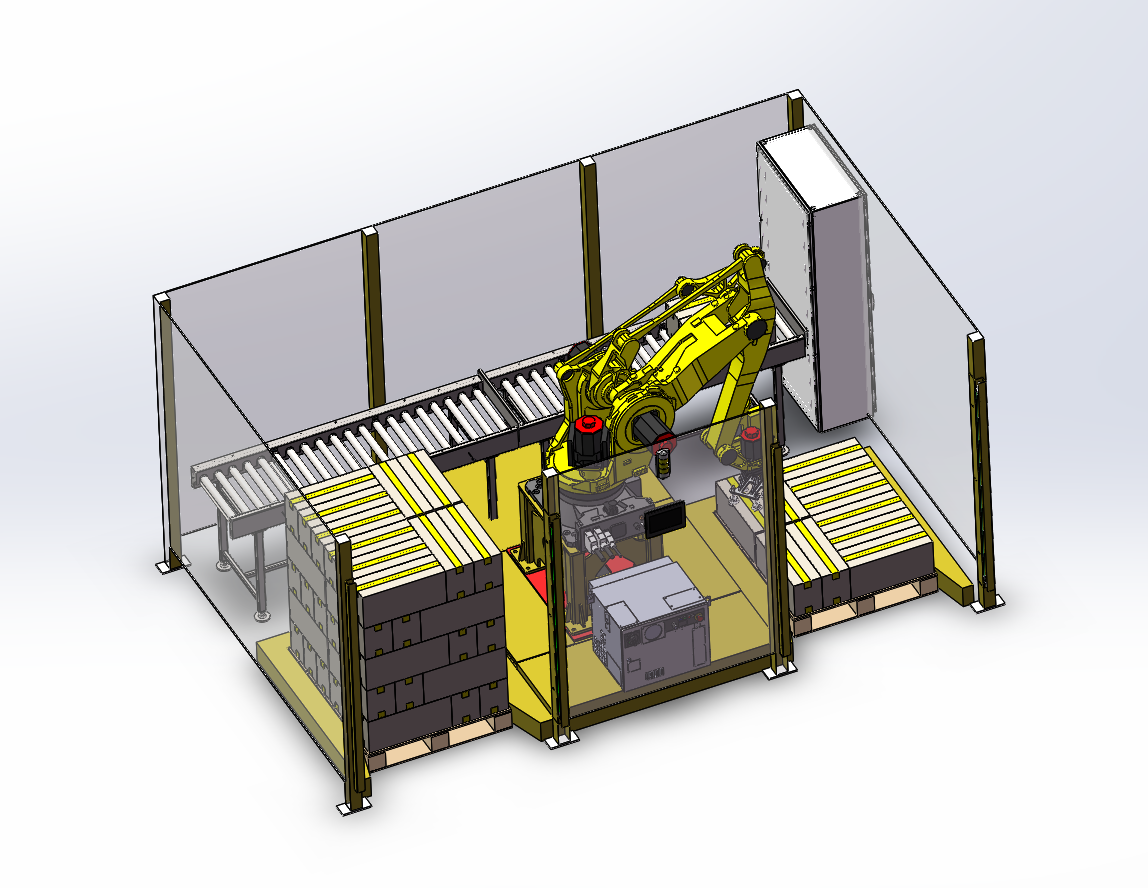

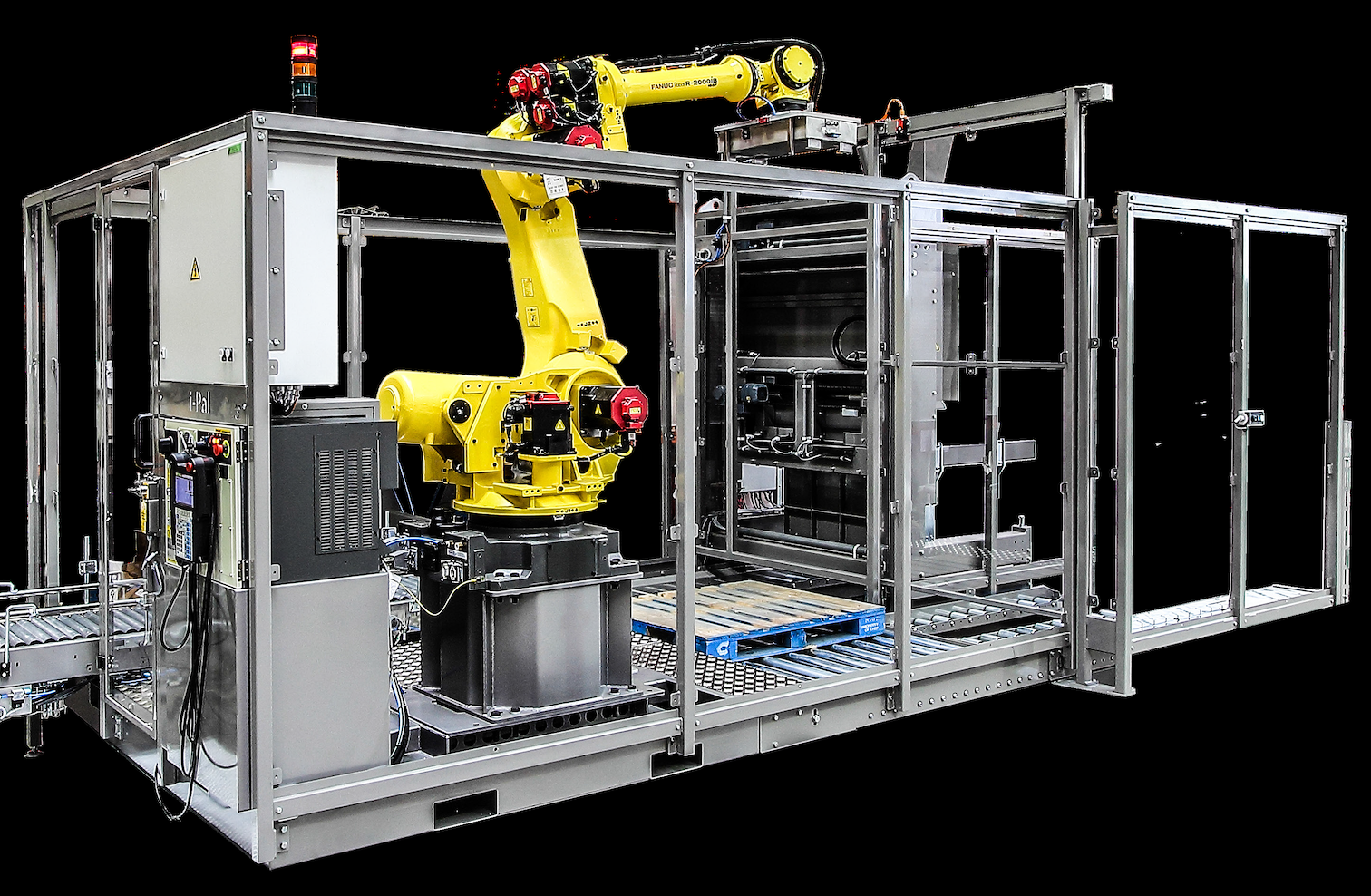

Elixir球坐标机器人码垛机

Robotic Palletizers         球坐标机器人码垛机

Fully automatic, self-programmed palletizing patterns, reliable performance                                         全自动,自编垛型,性能可靠

Elixir is a CE-compliant palletizer, built on principles of standardization and modular design.             Elixir在很大程度上以标准化和模块化作为设计理念,同时它是业界遵循CE安全标准的码垛机。

Ambient 环境参数:

Operating Hours  操作时长                             一天24小时,一周7天,一年50

Operating Temperature 操作室温                    ≥ 5°C

                                                                        ≤ 40°C

Humidity 湿度                                                  <90%

Ingress Protection 防护等级                        IP50

Maximum Ceiling Height 天花高度要求           > 3000mm

Product Infeed Height  产品输入高度              600-800mm

Pallet Output Height 托盘输出高度                  75mm

Floor loading  地板承载                                    0.01 kg/mm2

Safety Standard  安全执行标准:

NENEN-EN 415-10:2014                           Safety of packaging machines - Part 10: General requirements

N-EN-IEC 60204-1:2005                            Safety of machinery - Electrical equipment of machines - Part 1: General requirements

NEN-EN-ISO 13857:2008                          Safety of machinery - Safety distances to prevent hazard zones being reached by upper and lower limbs

UL508A                                                       Standard for Industrial Control Panels

NFPA 70                                                      National electrical code

ISO 13849-1                                                Performance Level

ISO 12100                                                   Risk Analysis

2006/42/EC                                                 Machine Directive

Electricity  电气需求:

Power 安装功率                                           13KVA

Voltage 电压                                                 380V, 50/60Hz接地

Current 短路电流                                          10kA

Control Voltage 控制电压                              24VDC

Cable Marking 电线标注                               所有连接均单独标签,同时E-drawing挂在电线旁边

All connection will be independently labelled, E-drawing hung beside the cable

Air pressure 气压                                           Dry air 干燥压缩空气>6Bar

Air Consumption 气耗                                    ≤ 8.2 NL/min

HMI 人机界面:

l  垛型选择和确定 Pattern selection and confimation

l  手动操作 Manual operation

l  生产状态 Production status

l  错误描述 Error description

l  紧急停机等 E-stop

Safety 安全:

Safety Level 安全等级                                           PLd

Noise Level 噪音等级                                           <80dB,距离产品1米处
